The Complete SOTAR Lineup

Every SOTAR raft, cataraft and inflatable kayak in one place: specs, base pricing, colors, add-ons and custom options. Order a preset from the shop, or build something fully custom with me.

48 models10 series12 base colorsHandmade in Merlin, Oregon

Browse boats Custom options & colors Build a SOTAR

Classic ST Rafts

SOTAR's original self-bailer. The ST keeps the same tube diameter all the way around, which gives it a stable ride and predictable tracking. It's the do-it-all pick for paddle crews, oar rigs and big expeditions, from a tight 10' R2 boat to the 18' Grand Canyon gold standard.

Model	Length	Width	Tube	Weight	People	Load	Price
Classic ST 10'	10 ft	62 in	19 in	75 lbs	2-4 people	940 lbs	$4,830
Classic ST 11'	11 ft	62 in	19 in	79 lbs	3-5 people	1040 lbs	$5,150
Classic ST 12'	12 ft	70 in	19 in	89 lbs	5-6 people	1190 lbs	$5,740
Classic ST 13'	13 ft	76 in	19 in	97 lbs	7 people	1332 lbs	$7,050
Classic ST 14'	14 ft	80 in	20 in	106 lbs	8 people	1622 lbs	$8,080
Classic ST 15'	15 ft	84 in	21 in	116 lbs	9 people	1864 lbs	$8,660
Classic ST 16'	16 ft	90 in	22 in	126 lbs	10 people	2246 lbs	$9,040
Classic ST 18'	18 ft	96 in	24 in	151 lbs	10 people	2968 lbs	$9,950

Classic ST Rafts

Classic ST 10'

$4,830 SOTAR base price

Length: 10 ft
Width: 62 in
Tube: 19 in
Weight: 75 lbs
People: 2-4 people
Load: 940 lbs

Full specs & options

Model	STR 10
Material	40oz REZCOAT URETHANE
Length	10 ft
Exterior width	62 in
Tube diameter	19 in
Straight section	60 in
Interior width	24 in
Thwarts	2
Thwart diameter	13 in
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	4
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	7 in
Bow & stern rake	7 in
Load capacity	940 lbs (at 1/3 submergence)
Capacity	2-4 people
Weight	75 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Light Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

Classic ST 11'

$5,150 SOTAR base price

Length: 11 ft
Width: 62 in
Tube: 19 in
Weight: 79 lbs
People: 3-5 people
Load: 1040 lbs

Full specs & options

Model	STR 11
Material	40oz REZCOAT URETHANE
Length	11 ft
Exterior width	62 in
Tube diameter	19 in
Straight section	67 in
Interior width	24 in
Thwarts	2
Thwart diameter	13 in
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	8 in
Bow & stern rake	8 in
Load capacity	1040 lbs (at 1/3 submergence)
Capacity	3-5 people
Weight	79 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Red, Orange, Yellow, Green, Dark Green, Light Blue, Teal, Dark Blue, Black, Grey, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

Classic ST 12'

$5,740 SOTAR base price

Length: 12 ft
Width: 70 in
Tube: 19 in
Weight: 89 lbs
People: 5-6 people
Load: 1190 lbs

Full specs & options

Model	STR 12
Material	40oz REZCOAT URETHANE
Length	12 ft
Exterior width	70 in
Tube diameter	19 in
Straight section	74 in
Interior width	32 in
Thwarts	2
Thwart diameter	13 in
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	9 in
Bow & stern rake	9 in
Load capacity	1190 lbs (at 1/3 submergence)
Capacity	5-6 people
Weight	89 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

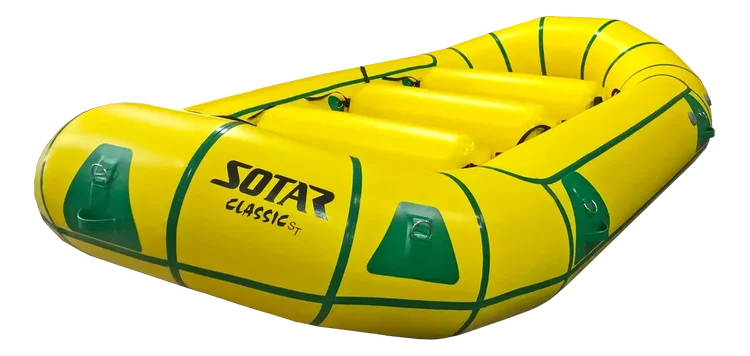

Classic ST 13'

$7,050 SOTAR base price

Length: 13 ft
Width: 76 in
Tube: 19 in
Weight: 97 lbs
People: 7 people
Load: 1332 lbs

Full specs & options

Model	STR 13
Material	40oz REZCOAT URETHANE
Length	13 ft
Exterior width	76 in
Tube diameter	19 in
Straight section	75 in
Interior width	38 in
Thwarts	2
Thwart diameter	13 in
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	10 in
Bow & stern rake	10 in
Load capacity	1332 lbs (at 1/3 submergence)
Capacity	7 people
Weight	97 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

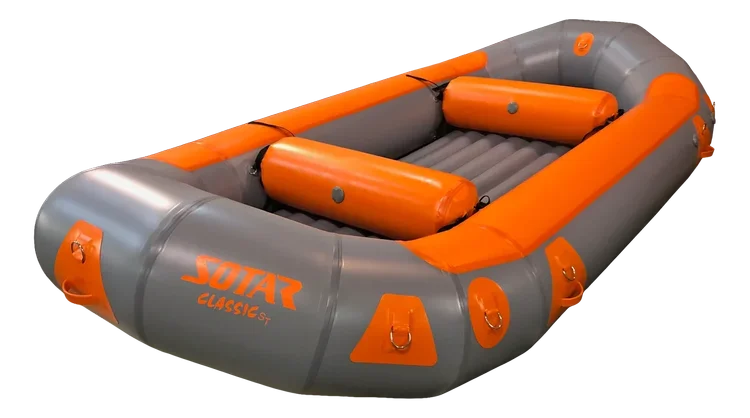

Classic ST 14'

$8,080 SOTAR base price

Length: 14 ft
Width: 80 in
Tube: 20 in
Weight: 106 lbs
People: 8 people
Load: 1622 lbs

Full specs & options

Model	STR 14
Material	40oz REZCOAT URETHANE
Length	14 ft
Exterior width	80 in
Tube diameter	20 in
Straight section	85 in
Interior width	40 in
Thwarts	2
Thwart diameter	13 in
Floor drop	13 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	11 in
Bow & stern rake	11 in
Load capacity	1622 lbs (at 1/3 submergence)
Capacity	8 people
Weight	106 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Dark Blue, Teal, Yellow, Orange, Red, Grey, White, Black, Green, Dark Green, Light Blue, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

Classic ST 15'

$8,660 SOTAR base price

Length: 15 ft
Width: 84 in
Tube: 21 in
Weight: 116 lbs
People: 9 people
Load: 1864 lbs

Full specs & options

Model	STR 15
Material	40oz REZCOAT URETHANE
Length	15 ft
Exterior width	84 in
Tube diameter	21 in
Straight section	86 in
Interior width	42 in
Thwarts	2
Thwart diameter	14 in
Floor drop	14 in
Floor thickness	6 in
Floor I-beams	8
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	13 in
Bow & stern rake	13 in
Load capacity	1864 lbs (at 1/3 submergence)
Capacity	9 people
Weight	116 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

Classic ST 16'

$9,040 SOTAR base price

Length: 16 ft
Width: 90 in
Tube: 22 in
Weight: 126 lbs
People: 10 people
Load: 2246 lbs

Full specs & options

Model	STR 16
Material	40oz REZCOAT URETHANE
Length	16 ft
Exterior width	90 in
Tube diameter	22 in
Straight section	88 in
Interior width	46 in
Thwarts	2
Thwart diameter	14 in
Floor drop	15 in
Floor thickness	6 in
Floor I-beams	8
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	13 in
Bow & stern rake	13 in
Load capacity	2246 lbs (at 1/3 submergence)
Capacity	10 people
Weight	126 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Classic ST Rafts

Classic ST 18'

$9,950 SOTAR base price

Length: 18 ft
Width: 96 in
Tube: 24 in
Weight: 151 lbs
People: 10 people
Load: 2968 lbs

Full specs & options

Model	STR 18
Material	40oz REZCOAT URETHANE
Length	18 ft
Exterior width	96 in
Tube diameter	24 in
Straight section	94 in
Interior width	48 in
Thwarts	2
Thwart diameter	14 in
Floor drop	17 in
Floor thickness	6 in
Floor I-beams	9
Valve orientation	S
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	14 in
Bow & stern rake	14 in
Load capacity	2968 lbs (at 1/3 submergence)
Capacity	10 people
Weight	151 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Liquid SL Rafts

SOTAR's Liquid SL rafts use diminishing tubes: bigger in the middle and tapering toward the ends. That smaller water footprint means quicker turns, better tracking and a more responsive ride. A favorite for rowers and mixed paddle-and-oar trips.

Model	Length	Width	Tube	Weight	People	Load	Price
Liquid SL 10'	10 ft	66 in	21 in- 16 in	77 lbs	2-4 people	663 lbs	$5,360
Liquid SL 11'	11 ft	66 in	21 in- 16 in	80 lbs	3-4 people	792 lbs	$5,460
Liquid SL 12'	12 ft	74 in	21–16 in	90 lbs	3-5 people	1134 lbs	$6,060
Liquid SL 13'	13 ft	80 in	21–16 in	99 lbs	7 people	1227 lbs	$7,620
Liquid SL 14'	14 ft	84 in	22–17 in	109 lbs	8 people	1516 lbs	$8,450
Liquid SL 15'	15 ft	88 in	23–18 in	118 lbs	9 people	1688 lbs	$8,990
Liquid SL 16'	16 ft	94 in	24–19 in	128 lbs	10 people	1995 lbs	$9,600
Liquid SL 18'	18 ft	100 in	26-21 in	146 lbs	10 people	2482 lbs	$10,500

Liquid SL Rafts

Liquid SL 10'

$5,360 SOTAR base price

Length: 10 ft
Width: 66 in
Tube: 21 in- 16 in
Weight: 77 lbs
People: 2-4 people
Load: 663 lbs

Full specs & options

Model	SLR 10
Material	40oz REZCOAT URETHANE
Length	10 ft
Exterior width	66 in
Tube diameter	21 in- 16 in
Straight section	58 in
Interior width	24 in
Thwarts	2
Thwart diameter	13 in
Floor drop	14 in
Floor thickness	6 in
Floor I-beams	4
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	7 in
Bow & stern rake	12 in
Load capacity	663 lbs (at 1/3 submergence)
Capacity	2-4 people
Weight	77 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 11'

$5,460 SOTAR base price

Length: 11 ft
Width: 66 in
Tube: 21 in- 16 in
Weight: 80 lbs
People: 3-4 people
Load: 792 lbs

Full specs & options

Model	SLR 11
Material	40oz REZCOAT URETHANE
Length	11 ft
Exterior width	66 in
Tube diameter	21 in- 16 in
Straight section	63 in
Interior width	24 in
Thwarts	2
Thwart diameter	13 in
Floor drop	14 in
Floor thickness	6 in
Floor I-beams	4
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	8 in
Bow & stern rake	13 in
Load capacity	792 lbs (at 1/3 submergence)
Capacity	3-4 people
Weight	80 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 12'

$6,060 SOTAR base price

Length: 12 ft
Width: 74 in
Tube: 21–16 in
Weight: 90 lbs
People: 3-5 people
Load: 1134 lbs

Full specs & options

Model	SLR 12
Material	40oz REZCOAT URETHANE
Length	12 ft
Exterior width	74 in
Tube diameter	21–16 in
Straight section	77 in
Interior width	32 in
Thwarts	2
Thwart diameter	13 in
Floor drop	14 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	9 in
Bow & stern rake	14 in
Load capacity	1134 lbs (at 1/3 submergence)
Capacity	3-5 people
Weight	90 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 13'

$7,620 SOTAR base price

Length: 13 ft
Width: 80 in
Tube: 21–16 in
Weight: 99 lbs
People: 7 people
Load: 1227 lbs

Full specs & options

Model	SLR 13
Material	40oz REZCOAT URETHANE
Length	13 ft
Exterior width	80 in
Tube diameter	21–16 in
Straight section	80 in
Interior width	38 in
Thwarts	2
Thwart diameter	13 in
Floor drop	14 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	10 in
Bow & stern rake	15 in
Load capacity	1227 lbs (at 1/3 submergence)
Capacity	7 people
Weight	99 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 14'

$8,450 SOTAR base price

Length: 14 ft
Width: 84 in
Tube: 22–17 in
Weight: 109 lbs
People: 8 people
Load: 1516 lbs

Full specs & options

Model	SLR 14
Material	40oz REZCOAT URETHANE
Length	14 ft
Exterior width	84 in
Tube diameter	22–17 in
Straight section	90 in
Interior width	40 in
Thwarts	2
Thwart diameter	13 in
Floor drop	15 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	6 chambers
Bow & stern rise	11 in
Bow & stern rake	16 in
Load capacity	1516 lbs (at 1/3 submergence)
Capacity	8 people
Weight	109 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 15'

$8,990 SOTAR base price

Length: 15 ft
Width: 88 in
Tube: 23–18 in
Weight: 118 lbs
People: 9 people
Load: 1688 lbs

Full specs & options

Model	SLR 15
Material	40oz REZCOAT URETHANE
Length	15 ft
Exterior width	88 in
Tube diameter	23–18 in
Straight section	90 in
Interior width	42 in
Thwarts	2
Thwart diameter	14 in
Floor drop	16 in
Floor thickness	6 in
Floor I-beams	8
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	13 in
Bow & stern rake	17 in
Load capacity	1688 lbs (at 1/3 submergence)
Capacity	9 people
Weight	118 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 16'

$9,600 SOTAR base price

Length: 16 ft
Width: 94 in
Tube: 24–19 in
Weight: 128 lbs
People: 10 people
Load: 1995 lbs

Full specs & options

Model	SLR 16
Material	40oz REZCOAT URETHANE
Length	16 ft
Exterior width	94 in
Tube diameter	24–19 in
Straight section	95 in
Interior width	46 in
Thwarts	2
Thwart diameter	14 in
Floor drop	17 in
Floor thickness	6 in
Floor I-beams	8
Valve orientation	I
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	13 in
Bow & stern rake	18 in
Load capacity	1995 lbs (at 1/3 submergence)
Capacity	10 people
Weight	128 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Rafts

Liquid SL 18'

$10,500 SOTAR base price

Length: 18 ft
Width: 100 in
Tube: 26-21 in
Weight: 146 lbs
People: 10 people
Load: 2482 lbs

Full specs & options

Model	SLR 18
Material	40oz REZCOAT URETHANE
Length	18 ft
Exterior width	100 in
Tube diameter	26-21 in
Straight section	98 in
Interior width	48 in
Thwarts	2
Thwart diameter	14 in
Floor drop	19 in
Floor thickness	6 in
Floor I-beams	9
Valve orientation	SS
D-rings	10
Handles	6
Air chambers	7 chambers
Bow & stern rise	14 in
Bow & stern rake	19 in
Load capacity	2482 lbs (at 1/3 submergence)
Capacity	10 people
Weight	146 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
2 buckle thwarts
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each
Extra Thwarts$300–330 each
Foot Cups$100 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Merlin Series

Lighter 35oz continuous-curve boats made for R1, R2 and small-crew whitewater. They boof, catch tight eddies and are easy to carry around a portage. The Rondel is the series' 8' inflatable kayak.

Model	Length	Width	Tube	Weight	People	Load	Price
Excalibur 10'	10 ft	62 in	18–14 in	54 lbs	1-2 people	850 lbs	$3,400
Lance 11'	11 ft	62 in	18–14 in	58 lbs	2 people	950 lbs	$3,800
Ballista 12'	12 ft	68 in	19–15 in	70 lbs	4 people	1050 lbs	$4,200

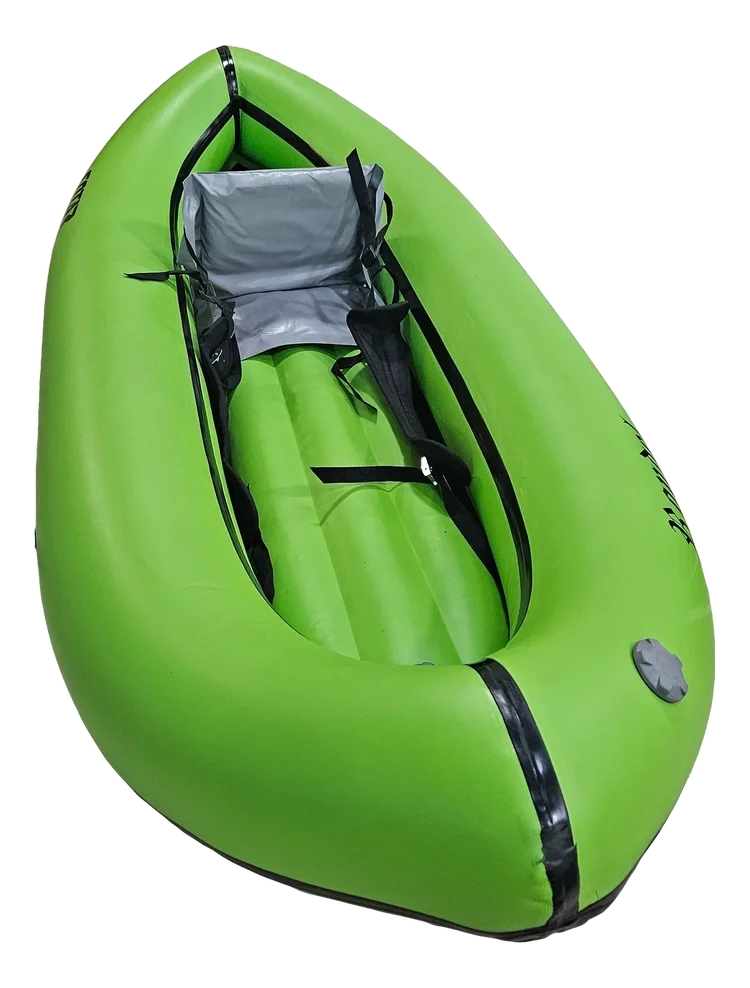

Rondel 8' IK	8 ft	36 in	11 in	24 lbs	1 person	220 lbs	$1,200

Merlin Series

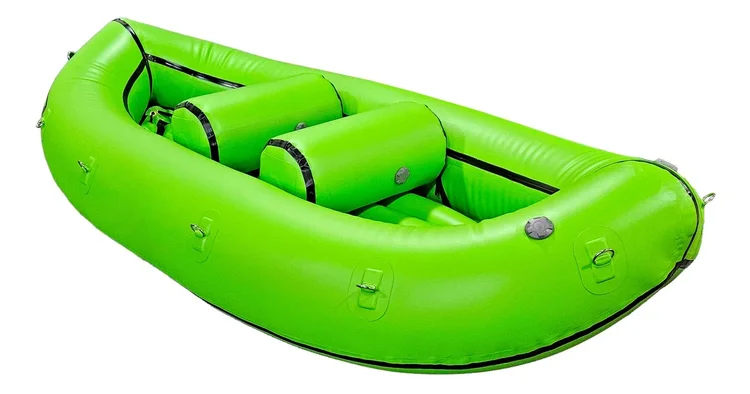

Excalibur 10'

$3,400 SOTAR base price

Length: 10 ft
Width: 62 in
Tube: 18–14 in
Weight: 54 lbs
People: 1-2 people
Load: 850 lbs

Full specs & options

Model	MERLIN 10
Material	35oz REZCOAT URETHANE
Length	10 ft
Exterior width	62 in
Tube diameter	18–14 in
Straight section	53 in
Interior width	26 in
Thwarts	2
Thwart diameter	13 in
Floor drop	8 in
D-rings	12
Air chambers	5 chambers
Bow & stern rake	9 in
Load capacity	850 lbs (at 1/3 submergence)
Capacity	1-2 people
Weight	54 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Merlin Series

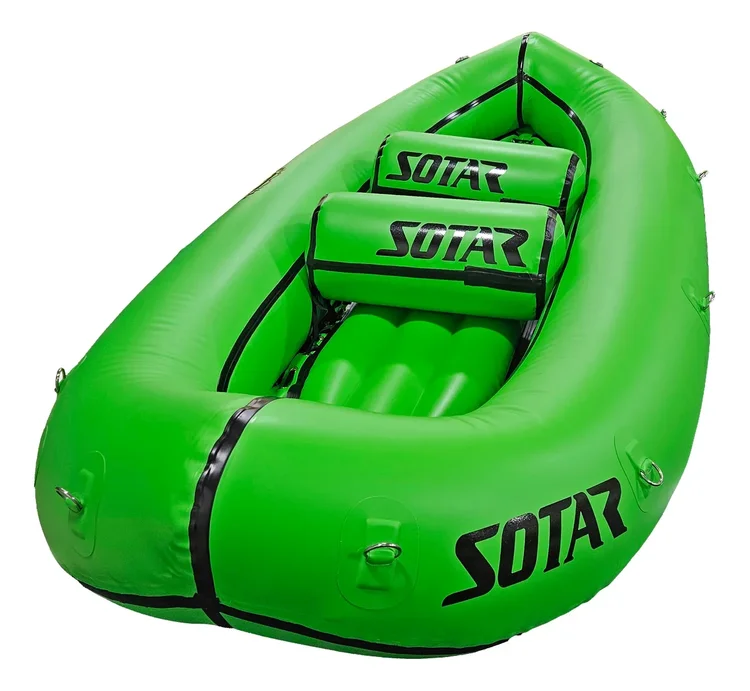

Lance 11'

$3,800 SOTAR base price

Length: 11 ft
Width: 62 in
Tube: 18–14 in
Weight: 58 lbs
People: 2 people
Load: 950 lbs

Full specs & options

Model	MERLIN 11
Material	35oz REZCOAT URETHANE
Length	11 ft
Exterior width	62 in
Tube diameter	18–14 in
Straight section	65 in
Interior width	26 in
Thwarts	2
Thwart diameter	13 in
Floor drop	9 in
D-rings	12
Air chambers	5 chambers
Bow & stern rake	9 in
Load capacity	950 lbs (at 1/3 submergence)
Capacity	2 people
Weight	58 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Merlin Series

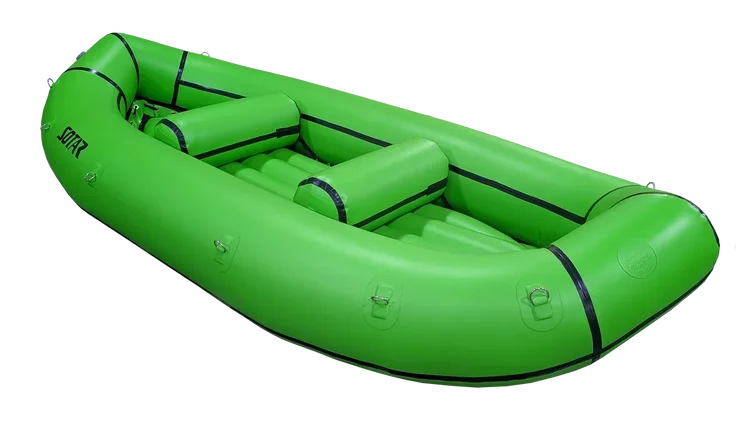

Ballista 12'

$4,200 SOTAR base price

Length: 12 ft
Width: 68 in
Tube: 19–15 in
Weight: 70 lbs
People: 4 people
Load: 1050 lbs

Full specs & options

Model	MERLIN 12
Material	35oz REZCOAT URETHANE
Length	12 ft
Exterior width	68 in
Tube diameter	19–15 in
Straight section	65 in
Interior width	30 in
Thwarts	2
Thwart diameter	13 in
Floor drop	12 in
D-rings	12
Air chambers	5 chambers
Bow & stern rake	11 in
Load capacity	1050 lbs (at 1/3 submergence)
Capacity	4 people
Weight	70 lbs
Warranty	5 year limited

Base colors

Lime Green

Order through SOLWYRX Custom order

Merlin Series

Rondel 8' IK

$1,200 SOTAR base price

Length: 8 ft
Width: 36 in
Tube: 11 in
Weight: 24 lbs
People: 1 person
Load: 220 lbs

Full specs & options

Model	MERLIN IK 8
Material	35oz REZCOAT URETHANE
Length	8 ft
Exterior width	36 in
Tube diameter	11 in
Interior width	14 in
Thwarts	1 back rest
D-rings	0
Air chambers	1 chambers
Load capacity	220 lbs (at 1/3 submergence)
Capacity	1 person
Weight	24 lbs
Warranty	5 year limited

Base colors

Lime Green

Order through SOLWYRX Custom order

Rogue Series

Light, performance-focused rafts named after rapids on the Rogue River. The whole series uses a mesh floor, which makes these boats great for steep creeks and high water.

Model	Length	Width	Tube	Weight	People	Load	Price
Nugget 11'	11 ft	66 in	20 in	55 lbs	1-2 people	575 lbs	$3,400
Argo 12'	12 ft	68 in	21 in	60 lbs	2-4 people	675 lbs	$3,600
Tyee 13'	13 ft	76 in	22 in	72 lbs	2-5 people	750 lbs	$4,100
Rainie 14'	14 ft	86 in	24 in	78 lbs	2-6 people	1020 lbs	$4,600

Rogue Series

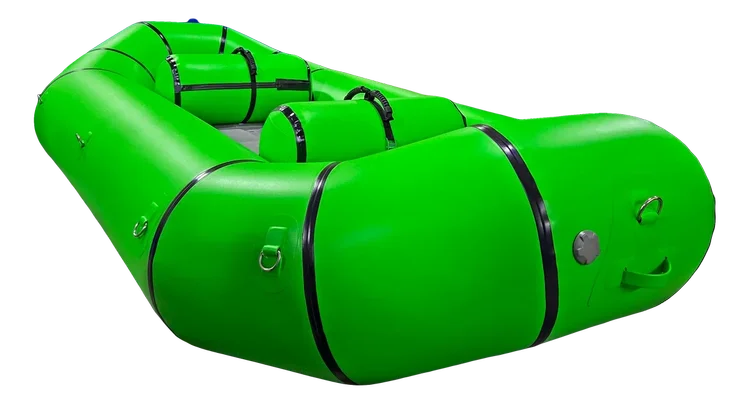

Nugget 11'

$3,400 SOTAR base price

Length: 11 ft
Width: 66 in
Tube: 20 in
Weight: 55 lbs
People: 1-2 people
Load: 575 lbs

Full specs & options

Model	ROGUE 11
Material	35oz REZCOAT URETHANE
Length	11 ft
Exterior width	66 in
Tube diameter	20 in
Straight section	70 in
Interior width	26 in
Thwarts	2
Thwart diameter	13 in
Floor drop	9 in
D-rings	12
Handles	2
Air chambers	4 chambers
Bow & stern rake	Bow 11 in/Stern 7 in
Load capacity	575 lbs (at 1/3 submergence)
Capacity	1-2 people
Weight	55 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Rogue Series

Argo 12'

$3,600 SOTAR base price

Length: 12 ft
Width: 68 in
Tube: 21 in
Weight: 60 lbs
People: 2-4 people
Load: 675 lbs

Full specs & options

Model	ROGUE 12
Material	35oz REZCOAT URETHANE
Length	12 ft
Exterior width	68 in
Tube diameter	21 in
Straight section	73 in
Interior width	26 in
Thwarts	2
Thwart diameter	13 in
Floor drop	10 in
D-rings	12
Handles	2
Air chambers	4 chambers
Bow & stern rake	Bow 11 in/Stern 7 in
Load capacity	675 lbs (at 1/3 submergence)
Capacity	2-4 people
Weight	60 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Rogue Series

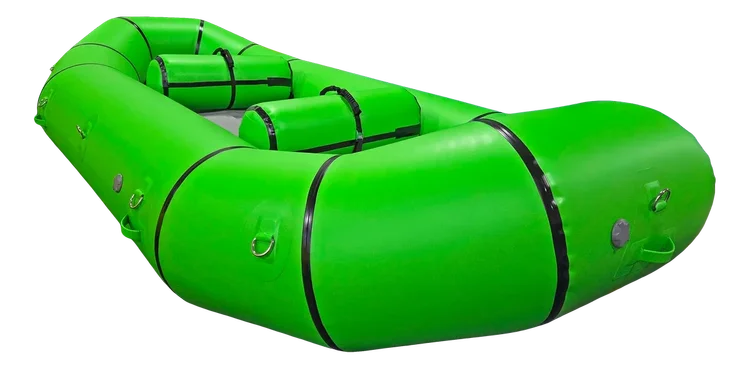

Tyee 13'

$4,100 SOTAR base price

Length: 13 ft
Width: 76 in
Tube: 22 in
Weight: 72 lbs
People: 2-5 people
Load: 750 lbs

Full specs & options

Model	ROGUE 13
Material	35oz REZCOAT URETHANE
Length	13 ft
Exterior width	76 in
Tube diameter	22 in
Straight section	74 in
Interior width	32 in
Thwarts	2
Thwart diameter	13 in
Floor drop	10 in
D-rings	12
Handles	6
Air chambers	6 chambers
Bow & stern rake	Bow 12 in/Stern 9 in
Load capacity	750 lbs (at 1/3 submergence)
Capacity	2-5 people
Weight	72 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Rogue Series

Rainie 14'

$4,600 SOTAR base price

Length: 14 ft
Width: 86 in
Tube: 24 in
Weight: 78 lbs
People: 2-6 people
Load: 1020 lbs

Full specs & options

Model	ROGUE 14
Material	35oz REZCOAT URETHANE
Length	14 ft
Exterior width	86 in
Tube diameter	24 in
Straight section	85 in
Interior width	38 in
Thwarts	2
Thwart diameter	13 in
Floor drop	11 in
D-rings	12
Handles	6
Air chambers	6 chambers
Bow & stern rake	Bow 13 in/Stern 10 in
Load capacity	1020 lbs (at 1/3 submergence)
Capacity	2-6 people
Weight	78 lbs
Warranty	5 year limited

Order through SOLWYRX Custom order

Strike Fishing Rafts

SOTAR's fishing rafts, built for smaller streams and narrow, shallow rivers. They stop quickly and move laterally across current with just a few strokes. The 11' MicroStrike is small enough for one person to lift onto a small vehicle.

Model	Length	Width	Tube	Weight	People	Load	Price
MicroStrike 11'	11 ft	53 in	16-12 in	65 lbs	1-2 people	650 lbs	$4,800
Strike 11'6"	11 ft6 in	70 in	14–19 in	72 lbs	2-3 people	1215 lbs	$6,180
Strike 12'6"	12 ft6 in	70 in	19–14 in	80 lbs	2-3 people	1320 lbs	$6,420
Strike 13'6"	13 ft6 in	72 in	19–14 in	95 lbs	3-4 people	1530 lbs	$6,660
Strike 14'6"	14 ft6 in	78 in	20 in	105 lbs	3-4 people	1700 / 1.3 lbs	$7,130

Strike Fishing Rafts

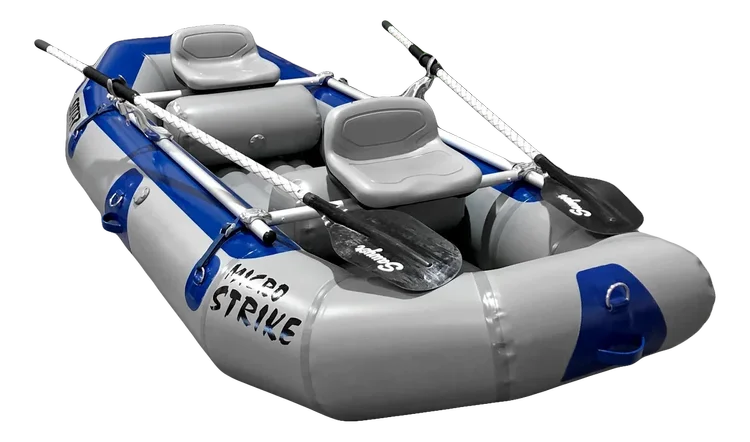

MicroStrike 11'

$4,800 SOTAR base price

Length: 11 ft
Width: 53 in
Tube: 16-12 in
Weight: 65 lbs
People: 1-2 people
Load: 650 lbs

Full specs & options

Model	MS 11
Material	40oz REZCOAT URETHANE
Length	11 ft
Exterior width	53 in
Tube diameter	16-12 in
Straight section	67 in
Interior width	21 in
Thwarts	0
Floor drop	10 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	16
Handles	4
Air chambers	3 chambers
Bow & stern rise	7 in
Bow & stern rake	9.25 in
Load capacity	650 lbs (at 1/3 submergence)
Capacity	1-2 people
Weight	65 lbs
Warranty	10 year limited

Included on every build

4 handle D-rings
6 oval D-rings
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Strike Fishing Rafts

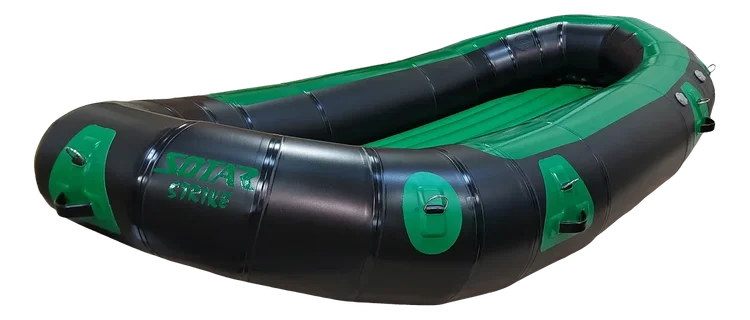

Strike 11'6"

$6,180 SOTAR base price

Length: 11 ft6 in
Width: 70 in
Tube: 14–19 in
Weight: 72 lbs
People: 2-3 people
Load: 1215 lbs

Full specs & options

Model	STK 11'6
Material	40oz REZCOAT URETHANE
Length	11 ft6 in
Exterior width	70 in
Tube diameter	14–19 in
Straight section	65 in
Interior width	32 in
Thwarts	0
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	5 chambers
Bow & stern rise	7 in
Bow & stern rake	11 / 9 in
Load capacity	1215 lbs (at 1/3 submergence)
Capacity	2-3 people
Weight	72 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Strike Fishing Rafts

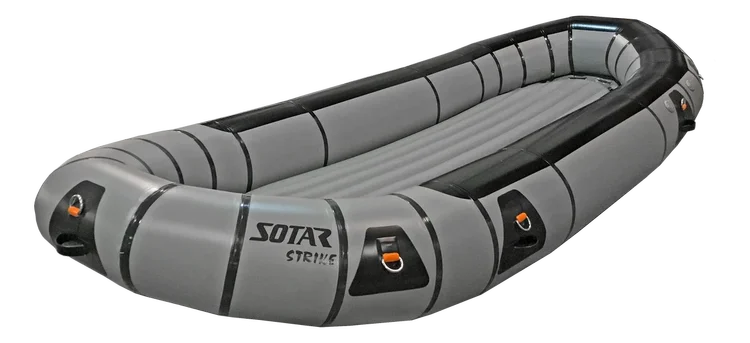

Strike 12'6"

$6,420 SOTAR base price

Length: 12 ft6 in
Width: 70 in
Tube: 19–14 in
Weight: 80 lbs
People: 2-3 people
Load: 1320 lbs

Full specs & options

Model	STK 12'6
Material	40oz REZCOAT URETHANE
Length	12 ft6 in
Exterior width	70 in
Tube diameter	19–14 in
Straight section	77 in
Interior width	32 in
Thwarts	0
Floor drop	11 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	5 chambers
Bow & stern rise	7 in
Bow & stern rake	11 / 9 in
Load capacity	1320 lbs (at 1/3 submergence)
Capacity	2-3 people
Weight	80 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 oval D-rings
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Strike Fishing Rafts

Strike 13'6"

$6,660 SOTAR base price

Length: 13 ft6 in
Width: 72 in
Tube: 19–14 in
Weight: 95 lbs
People: 3-4 people
Load: 1530 lbs

Full specs & options

Model	STK 13'6
Material	40oz REZCOAT URETHANE
Length	13 ft6 in
Exterior width	72 in
Tube diameter	19–14 in
Straight section	80 in
Interior width	35 in
Thwarts	0
Floor drop	12 in
Floor thickness	6 in
Floor I-beams	6
Valve orientation	I
D-rings	10
Handles	6
Air chambers	5 chambers
Bow & stern rise	7 in
Bow & stern rake	11 / 9 in
Load capacity	1530 lbs (at 1/3 submergence)
Capacity	3-4 people
Weight	95 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Strike Fishing Rafts

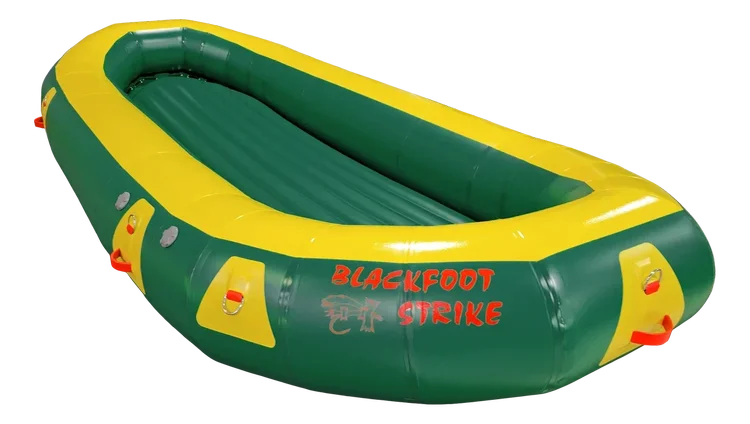

Strike 14'6"

$7,130 SOTAR base price

Length: 14 ft6 in
Width: 78 in
Tube: 20 in
Weight: 105 lbs
People: 3-4 people
Load: 1700 / 1.3 lbs

Full specs & options

Model	STK 14'6
Material	40oz REZCOAT URETHANE
Length	14 ft6 in
Exterior width	78 in
Tube diameter	20 in
Straight section	88 in
Interior width	38 in
Thwarts	0
Floor drop	13 in
Floor thickness	6.5 in
Floor I-beams	8
Valve orientation	I
D-rings	10
Handles	6
Air chambers	5 chambers
Bow & stern rise	7 in
Bow & stern rake	16 / 15 in
Load capacity	1700 / 1.3 lbs (at 1/3 submergence)
Capacity	3-4 people
Weight	105 lbs
Warranty	10 year limited

Included on every build

6 handle D-rings
4 opt D-rings
3 colors per boat

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Interior Width, Tube Diameter, Rake can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX Custom order

Legend Catarafts

The Legend's kick-up bow rises over waves, which is excellent for pulling out of big drops. Frames are not included.

Model	Length	Tube	Weight	People	Load	Price
Legend 11'	11 ft	21 in	48 lbs	–	463 lbs	$3,400
Legend 12'6"	12 ft6 in	22.5 in	59 lbs	–	564 lbs	$3,710
Legend 14'	14 ft	23 in	64 lbs	–	914 lbs	$4,280
Legend 15'6"	15 ft6 in	24 in	80 lbs	–	1154 lbs	$5,360
Legend 18'	18 ft	26 in	99 lbs	–	1750 lbs	$5,820

Legend Catarafts

Legend 11'

$3,400 SOTAR base price

Length: 11 ft
Tube: 21 in
Weight: 48 lbs
Load: 463 lbs

Full specs & options

Model	LEGEND 11
Material	40oz REZCOAT URETHANE
Length	11 ft
Tube diameter	21 in
Straight section	66 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	463 lbs (at 1/3 submergence)
Weight	48 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Legend Catarafts

Legend 12'6"

$3,710 SOTAR base price

Length: 12 ft6 in
Tube: 22.5 in
Weight: 59 lbs
Load: 564 lbs

Full specs & options

Model	LEGEND 12'6
Material	40oz REZCOAT URETHANE
Length	12 ft6 in
Tube diameter	22.5 in
Straight section	70.5 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	564 lbs (at 1/3 submergence)
Weight	59 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Legend Catarafts

Legend 14'

$4,280 SOTAR base price

Length: 14 ft
Tube: 23 in
Weight: 64 lbs
Load: 914 lbs

Full specs & options

Model	LEGEND 14
Material	40oz REZCOAT URETHANE
Length	14 ft
Tube diameter	23 in
Straight section	86 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	914 lbs (at 1/3 submergence)
Weight	64 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Legend Catarafts

Legend 15'6"

$5,360 SOTAR base price

Length: 15 ft6 in
Tube: 24 in
Weight: 80 lbs
Load: 1154 lbs

Full specs & options

Model	LEGEND 15'6
Material	40oz REZCOAT URETHANE
Length	15 ft6 in
Tube diameter	24 in
Straight section	102 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	1154 lbs (at 1/3 submergence)
Weight	80 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Legend Catarafts

Legend 18'

$5,820 SOTAR base price

Length: 18 ft
Tube: 26 in
Weight: 99 lbs
Load: 1750 lbs

Full specs & options

Model	LEGEND 18
Material	40oz REZCOAT URETHANE
Length	18 ft
Tube diameter	26 in
Straight section	132 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	1750 lbs (at 1/3 submergence)
Weight	99 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Classic ST Catarafts

The ST was the first all-welded cataraft and the first to use SOTAR's continuous-curve tube. Compared to the Legend it's flatter and cuts through waves instead of kicking the bow up. Frames are not included.

Model	Length	Tube	Weight	People	Load	Price
ST Cat 12'6"	12 ft6 in	21 in	56 lbs	–	562 lbs	$3,500
ST Cat 14'	14 ft	23 in	62 lbs	4 people	914 lbs	$4,120
ST Cat 15'6"	15 ft6 in	24 in	78 lbs	4 people	1100 lbs	$5,050
ST Cat 18'	18 ft	25 in	90 lbs	5 people	1460 lbs	$5,560
ST Cat 20'	20 ft	28 in	109 lbs	6 people	1874 lbs	$6,140

Classic ST Catarafts

ST Cat 12'6"

$3,500 SOTAR base price

Length: 12 ft6 in
Tube: 21 in
Weight: 56 lbs
Load: 562 lbs

Full specs & options

Model	STC 12'6
Material	40oz REZCOAT URETHANE
Length	12 ft6 in
Tube diameter	21 in
Straight section	88.5 in
D-rings	16
Air chambers	4 chambers
Load capacity	562 lbs (at 1/3 submergence)
Weight	56 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Classic ST Catarafts

ST Cat 14'

$4,120 SOTAR base price

Length: 14 ft
Tube: 23 in
Weight: 62 lbs
People: 4 people
Load: 914 lbs

Full specs & options

Model	STC 14
Material	40oz REZCOAT URETHANE
Length	14 ft
Tube diameter	23 in
Straight section	92 in
D-rings	16
Air chambers	4 chambers
Load capacity	914 lbs (at 1/3 submergence)
Capacity	4 people
Weight	62 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Red, Dark Green, Grey, Black, Green, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Classic ST Catarafts

ST Cat 15'6"

$5,050 SOTAR base price

Length: 15 ft6 in
Tube: 24 in
Weight: 78 lbs
People: 4 people
Load: 1100 lbs

Full specs & options

Model	STC 15'6
Material	40oz REZCOAT URETHANE
Length	15 ft6 in
Tube diameter	24 in
Straight section	96 in
D-rings	16
Air chambers	4 chambers
Load capacity	1100 lbs (at 1/3 submergence)
Capacity	4 people
Weight	78 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Classic ST Catarafts

ST Cat 18'

$5,560 SOTAR base price

Length: 18 ft
Tube: 25 in
Weight: 90 lbs
People: 5 people
Load: 1460 lbs

Full specs & options

Model	STC 18
Material	40oz REZCOAT URETHANE
Length	18 ft
Tube diameter	25 in
Straight section	140 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	1460 lbs (at 1/3 submergence)
Capacity	5 people
Weight	90 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Classic ST Catarafts

ST Cat 20'

$6,140 SOTAR base price

Length: 20 ft
Tube: 28 in
Weight: 109 lbs
People: 6 people
Load: 1874 lbs

Full specs & options

Model	STC 20
Material	40oz REZCOAT URETHANE
Length	20 ft
Tube diameter	28 in
Straight section	147 in
Thwarts	16
D-rings	16
Handles	4
Air chambers	4 chambers
Bow & stern rise	4.5 ft
Load capacity	1874 lbs (at 1/3 submergence)
Capacity	6 people
Weight	109 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Green, Grey, Black, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Catarafts

Liquid SL catarafts balance agility with enough capacity for day runs and short multi-days. Frames are not included.

Model	Length	Tube	Weight	People	Load	Price
SL Cat 12'6"	12 ft6 in	22 in	56 lbs	–	408 lbs	$3,610
SL Cat 14'	14 ft	24 in	67 lbs	–	447 lbs	$4,170
SL Cat 15'6"	15 ft6 in	25 in	74 lbs	–	626 lbs	$4,940

Liquid SL Catarafts

SL Cat 12'6"

$3,610 SOTAR base price

Length: 12 ft6 in
Tube: 22 in
Weight: 56 lbs
Load: 408 lbs

Full specs & options

Model	SLC 12'6
Material	40oz REZCOAT URETHANE
Length	12 ft6 in
Tube diameter	22 in
Straight section	78 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	408 lbs (at 1/3 submergence)
Weight	56 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Catarafts

SL Cat 14'

$4,170 SOTAR base price

Length: 14 ft
Tube: 24 in
Weight: 67 lbs
Load: 447 lbs

Full specs & options

Model	SLC 14
Material	40oz REZCOAT URETHANE
Length	14 ft
Tube diameter	24 in
Straight section	90 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	447 lbs (at 1/3 submergence)
Weight	67 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Liquid SL Catarafts

SL Cat 15'6"

$4,940 SOTAR base price

Length: 15 ft6 in
Tube: 25 in
Weight: 74 lbs
Load: 626 lbs

Full specs & options

Model	SLC 15'6
Material	40oz REZCOAT URETHANE
Length	15 ft6 in
Tube diameter	25 in
Straight section	99 in
D-rings	16
Handles	4
Air chambers	4 chambers
Load capacity	626 lbs (at 1/3 submergence)
Weight	74 lbs
Warranty	10 YEAR

Included on every build

For each tube:
2 handle D-rings - together position
2 opt D-rings
4 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Coho Fishing Catarafts

Two-person fishing cats: one angler on the oars, the other casting from a stable bow platform. Frames are not included.

Model	Length	Tube	Weight	People	Load	Price
Coho 11'	11 ft	19 in	42 lbs	–	573 lbs	$3,190
Coho 13'	13 ft	20 in	48 lbs	–	770 lbs	$3,400

Coho Fishing Catarafts

Coho 11'

$3,190 SOTAR base price

Length: 11 ft
Tube: 19 in
Weight: 42 lbs
Load: 573 lbs

Full specs & options

Model	COHO 11
Material	40oz REZCOAT URETHANE
Length	11 ft
Tube diameter	19 in
Straight section	66 in
D-rings	20
Handles	4
Air chambers	4 chambers
Load capacity	573 lbs (at 1/3 submergence)
Weight	42 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handles
10 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

Coho Fishing Catarafts

Coho 13'

$3,400 SOTAR base price

Length: 13 ft
Tube: 20 in
Weight: 48 lbs
Load: 770 lbs

Full specs & options

Model	COHO 13
Material	40oz REZCOAT URETHANE
Length	13 ft
Tube diameter	20 in
Straight section	90 in
D-rings	20
Handles	4
Air chambers	4 chambers
Load capacity	770 lbs (at 1/3 submergence)
Weight	48 lbs
Warranty	10 year limited

Included on every build

For each tube:
2 handles
10 oval D-rings
3 colors per boat
Frame not included

Add-ons

Top Chafe$22–27 per sq ft
Bottom Chafe$22–27 per sq ft
Bottom Wrap$44–54 per sq ft
Extra D-rings$30–60 each

Custom design changes

Length, Tube Diameter can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White, Tan

Order through SOLWYRX

SL Inflatable Kayaks

SOTAR's Liquid SL inflatable kayaks track well and respond to the smallest paddle stroke. Each comes with adjustable foot braces, thigh straps and an inflatable seat.

Model	Length	Width	Tube	Weight	People	Load	Price
SL IK 10'	10 ft3 in	37 in	11.5 in	44 lbs	1 person	200 lbs	$2,380
SL IK 11'	11 ft2 in	37 in	11.5 in	46 lbs	1 person	375 lbs	$2,490
SL IK 12'	12 ft2 in	37 in	11.5 in	50 lbs	1 person	485 lbs	$2,600
SL IK 14' Tandem	14 ft2 in	37 in	11.5 in	60 lbs	2 people	600 lbs	$3,050

SL Inflatable Kayaks

SL IK 10'

$2,380 SOTAR base price

Length: 10 ft3 in
Width: 37 in
Tube: 11.5 in
Weight: 44 lbs
People: 1 person
Load: 200 lbs

Full specs & options

Model	SLIK 10
Material	40oz REZCOAT URETHANE
Length	10 ft3 in
Exterior width	37 in
Tube diameter	11.5 in
Interior width	14 in
Thwarts	Back rest
Floor drop	7 in
Floor thickness	5 in
Valve orientation	S
D-rings	18
Handles	2
Air chambers	4 chambers
Load capacity	200 lbs (at 1/3 submergence)
Capacity	1 person
Weight	44 lbs
Warranty	10 year limited

Included on every build

18 internal acc D-rings
2 handles (webbing in bow & stern)
2 foot pegs
1 back rest

Add-ons

Extra D-rings$30–60 each

Custom design changes

Length can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White

Order through SOLWYRX Custom order

SL Inflatable Kayaks

SL IK 11'

$2,490 SOTAR base price

Length: 11 ft2 in
Width: 37 in
Tube: 11.5 in
Weight: 46 lbs
People: 1 person
Load: 375 lbs

Full specs & options

Model	SLIK 11
Material	40oz REZCOAT URETHANE
Length	11 ft2 in
Exterior width	37 in
Tube diameter	11.5 in
Interior width	14 in
Thwarts	Back rest
Floor drop	7 in
Floor thickness	5 in
Valve orientation	S
D-rings	18
Handles	2
Air chambers	4 chambers
Load capacity	375 lbs (at 1/3 submergence)
Capacity	1 person
Weight	46 lbs
Warranty	10 year limited

Included on every build

18 internal acc D-rings
2 handles (webbing in bow & stern)
2 foot pegs
1 back rest

Add-ons

Extra D-rings$30–60 each

Custom design changes

Length can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White

Order through SOLWYRX Custom order

SL Inflatable Kayaks

SL IK 12'

$2,600 SOTAR base price

Length: 12 ft2 in
Width: 37 in
Tube: 11.5 in
Weight: 50 lbs
People: 1 person
Load: 485 lbs

Full specs & options

Model	SLIK 12
Material	40oz REZCOAT URETHANE
Length	12 ft2 in
Exterior width	37 in
Tube diameter	11.5 in
Interior width	14 in
Thwarts	Back rest
Floor drop	7 in
Floor thickness	5 in
Valve orientation	S
D-rings	18
Handles	2
Air chambers	4 chambers
Load capacity	485 lbs (at 1/3 submergence)
Capacity	1 person
Weight	50 lbs
Warranty	10 year limited

Included on every build

18 internal acc D-rings
2 handles (webbing in bow & stern)
2 foot pegs
1 back rest

Add-ons

Extra D-rings$30–60 each

Custom design changes

Length can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White

Order through SOLWYRX Custom order

SL Inflatable Kayaks

SL IK 14' Tandem

$3,050 SOTAR base price

Length: 14 ft2 in
Width: 37 in
Tube: 11.5 in
Weight: 60 lbs
People: 2 people
Load: 600 lbs

Full specs & options

Model	SLIK 14
Material	40oz REZCOAT URETHANE
Length	14 ft2 in
Exterior width	37 in
Tube diameter	11.5 in
Interior width	14 in
Thwarts	2 Back restS
Floor drop	7 in
Floor thickness	5 in
D-rings	24
Handles	2
Air chambers	5 chambers
Load capacity	600 lbs (at 1/3 submergence)
Capacity	2 people
Weight	60 lbs
Warranty	10 year limited

Included on every build

18 internal acc D-rings
2 handles (webbing in bow & stern)
4 foot pegs
2 back rests

Add-ons

Extra D-rings$30–60 each

Custom design changes

Length can be modified (price changes with the design).

Base colors

Teal, Yellow, Orange, Grey, Black, Green, Dark Green, Red, Dark Blue, Light Blue, White

Order through SOLWYRX Custom order

No boats match that search.

Make It Yours: SOTAR Custom Options

Every SOTAR is built one at a time, so almost anything can be changed. These are SOTAR's published add-on prices. Some options are only offered on certain models, and I'll confirm exact pricing when we put your order together.

Design Modifications

Handles & D-Rings

Logos & Graphics

Custom Colors

Top Chafe

Bottom Chafe / Wrap

Thwarts

Valve Placement

Foot Cups

See every custom option, spec and price

Add-ons

Top chafe	$22–27 per sq ft
Bottom chafe	$22–27 per sq ft
Bottom wrap	$44–54 per sq ft
Extra D-rings	$30–60 each
Extra thwarts (rafts)	$300–330 each
Foot cups (rafts)	$100 each

Design changes

Rafts can be modified in length, interior width, tube diameter and rake. Catarafts can change length and tube diameter, and SL kayaks length. Design changes affect the price.

Also customizable

Handle and D-ring placement and quantity
Logos and graphics on the tubes
Custom color schemes for tubes, floors, thwarts and highlights
Thwart placement and size
Valve placement
Top chafe for seating areas and a bottom wrap for rocky, shallow water

Base colors

Most models offer these base colors, and most rafts and catarafts include up to 3 colors per boat. Merlin and Rogue series colors are set by SOTAR, so ask me about options.

Teal

Yellow

Orange

Grey

Green

Dark Green

Red

Dark Blue

Light Blue

White

Tan

Black

On-screen swatches are approximate. SOTAR's material chart:

Want to see how colors look together? Try the Classic ST designer.

How ordering works

Pick a model. Use the tables above, or ask me what fits your rivers and crew.
Preset or custom. Order a pre-designed boat from the shop, or email me to design a fully custom one.
I put it together. I check the design, price it, place the order with SOTAR and send you an invoice.
SOTAR builds it. Every boat is made to order. SOTAR currently lists about 8 weeks, and shipping is extra.

Start a custom order Shop SOTAR presets

Guides to help you choose

Warranty

Classic ST, Liquid SL, Strike, catarafts and SL kayaks list a 10-year limited warranty. Merlin and Rogue boats list 5 years.

SOTAR Questions

Quick answers about pricing, build times and options.

How much does a SOTAR raft cost?

SOTAR base prices run from $1,200 for the 8' Rondel inflatable kayak to $10,500 for the 18' Liquid SL raft. Classic ST rafts start at $4,830 (10') and Merlin and Rogue rafts start at $3,400. Add-ons, custom changes and shipping add to the price.

How long does it take SOTAR to build a boat?

Every SOTAR is made to order. SOTAR currently lists a lead time of about 8 weeks.

What's the difference between the Classic ST and Liquid SL rafts?

The Classic ST keeps the same tube diameter all the way around for stability and predictable tracking. The Liquid SL uses diminishing tubes that taper toward the ends for a smaller water footprint, quicker turns and a more responsive ride.

What custom options can I add to a SOTAR?

Top chafe and bottom chafe ($22–27 per sq ft), a bottom wrap ($44–54 per sq ft), extra D-rings ($30–60 each), extra thwarts ($300–330 each) and foot cups ($100 each), plus custom colors, logos, valve placement and changes to length, width, tube diameter and rake.

What warranty comes with a SOTAR?

Classic ST, Liquid SL, Strike, catarafts and SL kayaks list a 10-year limited warranty. Merlin and Rogue series boats list a 5-year limited warranty.

Do SOTAR catarafts come with a frame?

No. SOTAR catarafts are sold as tubes only; the frame is not included.

Can I order any SOTAR through SOLWYRX?

Yes. SOLWYRX is an authorized SOTAR dealer. Order a preset from the shop or email Jacob to build a fully custom boat.

Prices are SOTAR's published base prices as of October 2026 and can change. Shipping is extra. Specs, options and images courtesy of SOTAR. SOLWYRX preset prices may differ from SOTAR's base price because presets include extra options. Questions? Email Jacob.
